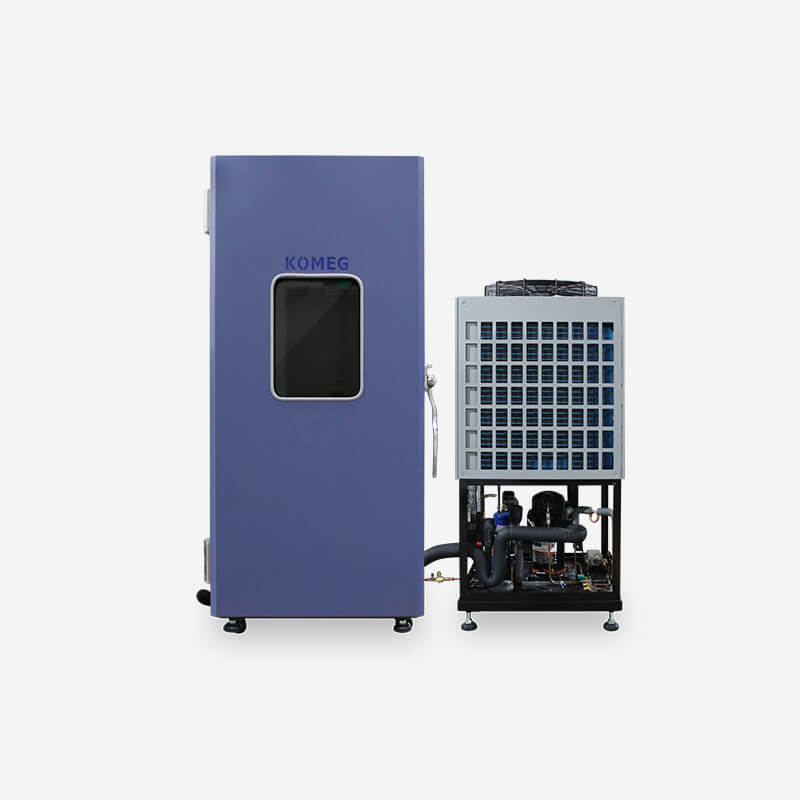

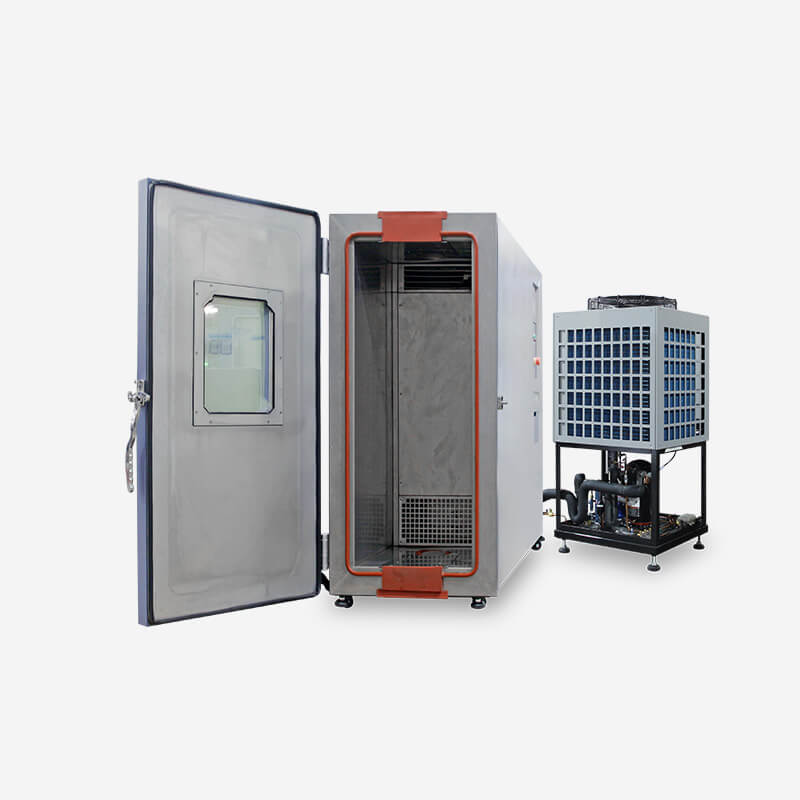

This temperature and humidity test chamber is a customized environmental test chamber. According to the customer’s requirements, we have made a split design, which is divided into two parts: the test area and the refrigeration unit. The size of the split type temperature and humidity test chamber can be customized as required.
Model | KMH-262-LN2 |
Volume | 262L |
Inner Dimensions W×H×D（mm） | 460×1120×510 |
External Dimensions W×H×D（mm） | 660×1475×1600 |
Temperature Range | R: -20℃~+150℃/180℃ L:-40℃~+150℃/180℃ S:-70℃~+150℃/180℃ |
Temperature Uniformity | ≤2.0℃ |
Temperature Fluctuation | ±0.5℃ |
Temperature Deviation | ≤±2.0℃ |
Humidity Range | 20%~98%RH |
Humidity Uniformity | ±3.0%RH (no load) |
Humidity Fluctuation | ±2.0%RH |
Humidity Deviation | ±3.0%RH(˃75%RH) ±5.0%RH(≤75%RH) |
Heating Time | -40℃~+100℃,45min (no load, average) |
Cooling Time | +20℃~-40℃,60min(no load, average) |
Observation Window (mm) | W210×H270 |
Noise | ≤65dB |
Power | 380V AC(±10%)50Hz±0.5 |
