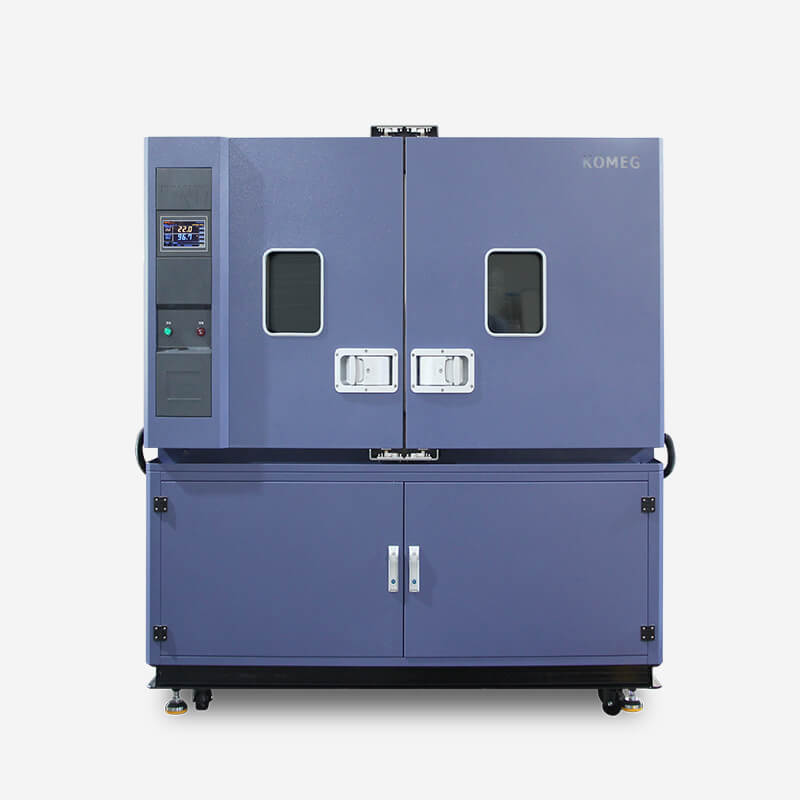

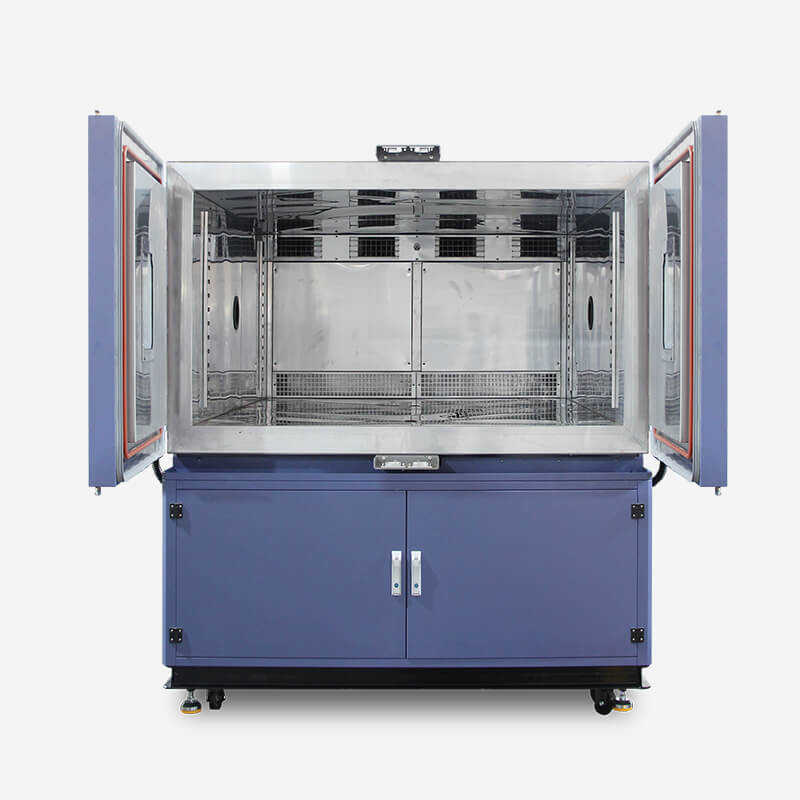

The temperature and humidity test chamber adopts water-cooled cooling method, the temperature range is -40℃~+150℃, and the humidity range is 20%~98%RH. Application fields of temperature and humidity test chamber: all kinds of auto parts, electronic products, various electronic components and materials.
Model | KMH-2700L | |
Volume | 2700L | |
Temperature Range | L:-40℃~+150℃ | |
Temperature Uniformity | ≤2℃ | |
Temperature Fluctuation | ±0.5℃ | |
Temperature Deviation | ±2.0℃ | |
Humidity Range | 20%~98%RH | |
Humidity Uniformity | ±3%RH (empty) | |
Humidity Fluctuation | ±2%RH | |
Humidity Deviation | ±3%RH(˃75%RH) ±5%RH(≤75%RH) | |
Heating Time | -40℃~+80℃, 2℃/min, empty | |
Cooling Time | +80℃~-40℃, 1℃/min, empty | |
Noise | ≤70dB | |
Inner Dimensions (mm) | W | 1700 |
H | 800 | |
D | 2000 | |
External Dimensions (mm) | W | 1900 |
H | 1900 | |
D | 3050 | |
Power | 380V AC(±10%)50Hz±0.5 | |
