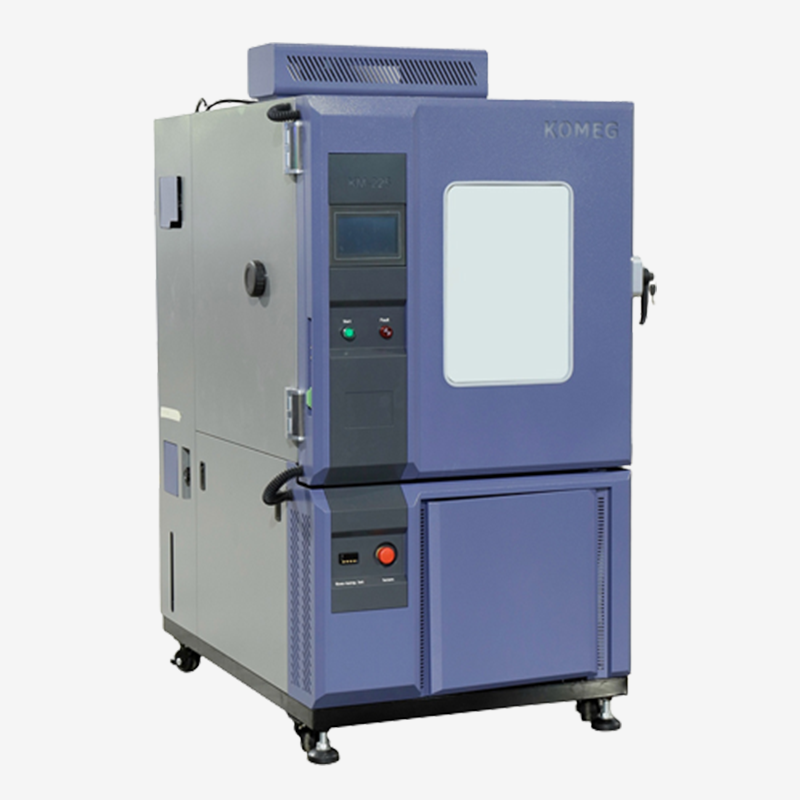

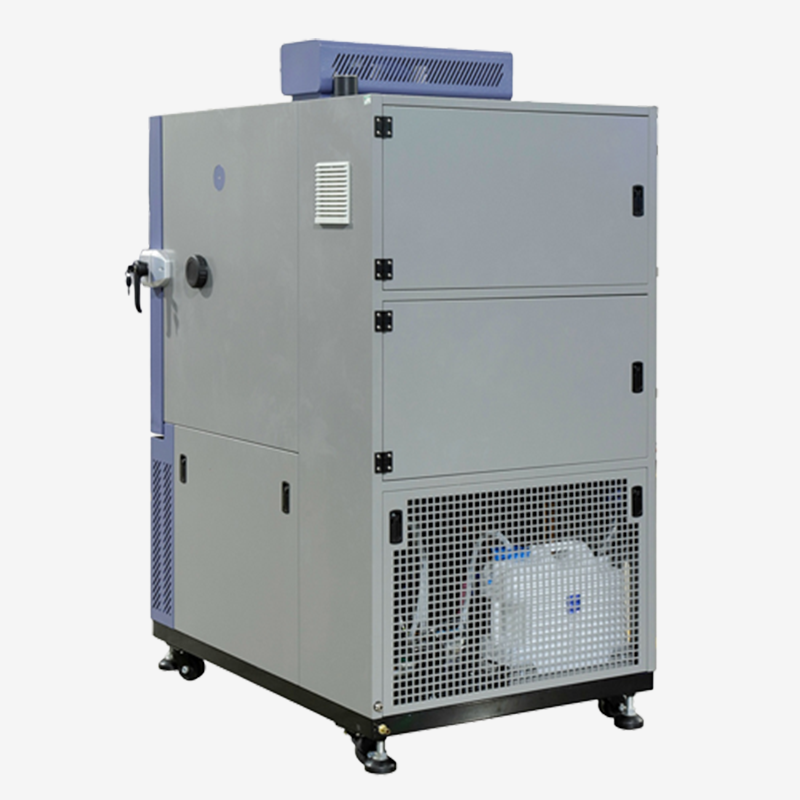

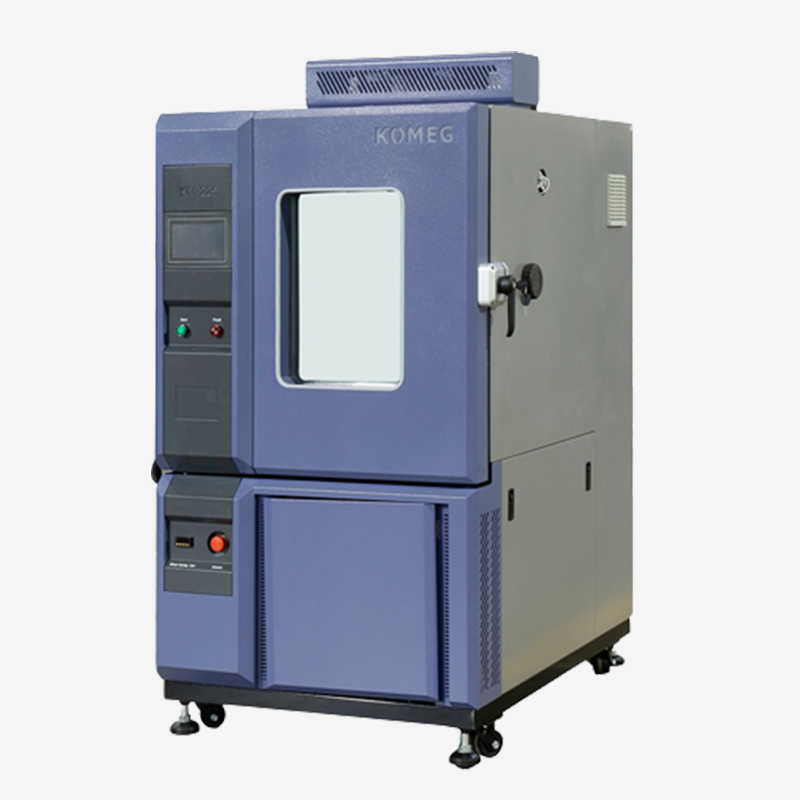

Temperature and Humidity Test Chambers
Temperature and Humidity Test Chambers
- Robust design & Reliable performance
- Wide temperature humidity range and volume selection
- Available in sizes from 64L to 1000L and more
- Programmable touchscreen controller
- Multilingual User Interface
- RS485, Ethernet communication port, USB download port
- Cable entry port(Two Φ50mm/100mm cable ports)
- Adjustable sample shelf
- Movable casters
- Standard and customized
- CE marking, ISO 9001, ISO 14001
Temperature and Humidity Test Chambers, also known as climatic or climate test chambers, can accurately simulate a wide range of complicated natural environmental conditions such as heat damp, low temperature, high temperature, constant heat, etc. and is suitable for reliability test in industrial products.
Mainly applied in electronics, electrical appliance, mobile phones, communication, meters, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality inspection.
KOMEG offers diverse types to meet different testing needs including: Benchtops • Reach-ins • Walk-Ins.
With standard sizes ranging from 64 liters to 1000 liters, our KMH series can meet common temperature and humidity testing needs. For more advanced test requirements, contact us to customize your specific chambers today.
Features of Temperature and Humidity Test Chamber
- Intelligent control of temperature and humidity, automatic adjustment.
- Multiple safety protection devices reduce the failure rate and extend the service life of the machine.
- Neat circuit design facilitates quick troubleshooting and repair.
- Compressor with reliable performance ensures stable operation of the machine.
- Standard equipped with USB interface to store test data.
- Optional RS-485 and LAN interface for remote control and monitoring.
- Equipped with mobile casters for easy balancing and movement of the machine.
- Door frame configuration with anti-condensation electric heating device and high/low-temperature resistant sealing strip to prevent external condensation and frosting.
- Vacuum glass window and lighting to facilitate observation of the test process.
- Bottom with drainage interface for efficient water drainage design.
- Cable port, shelves, mobile casters, LED lighting device, USB interface are standard.
| Model No. | KMH-64 | KMH-150 | KMH-225 | KMH-408 | KMH-1000 |
| Test Space Volume（Liters） | 64 | 150 | 225 | 408 | 1000 |
| Inner chamber size W×H×D(mm) | 400×400×400 | 600×600×460 | 700×700×480 | 700×750×800 | 1000×1000×1000 |
| Exterior chamber size W×H×D(mm) | 700×1652×1170 | 800×1715×1230 | 900×1660×1470 | 900×1710×1790 | 1200×1910×1725 |
| Temperature range | R: -20°C to +150°C L: -40°C to +150°C S: -70°C to +150°C (180°C optional) | ||||
| Humidity range | 20% to 98% RH (10% to 98% RH , 5% to 98% RH (optional) | ||||
| Temperature & humidity fluctuation | ±0.5°C/±2.0% RH | ||||
| Temperature & humidity uniformity | ≤ 2.0°C/3% RH | ||||
| Temperature change rate acc. IEC 60068-3-5 | Heating rate 3°C/min, cooling rate 1°C/min(average rate, no load) | ||||
| Exterior chamber material | High-quality carbon steel with painting | ||||
| Interior chamber material | SUS304 matte stainless steel plate | ||||
| Insulation material | Rigid polyurethane foam insulation | ||||
| Refrigeration system | Air cooled/Water cooled | ||||
| Hermetic compressor, single stage or cascade refrigeration system, environmental-friendly refrigerant | |||||
| Controller | “7””LCD Touch Screen Controller with PID control” | ||||
| Safety protection device | NFB(No fuse breaker), over pressure, over heat and over current protectors for compressor, over temperature protectors, over load protector of fan, dry heat protector,short of water protector | ||||
| Standard accessory | Sight window*1, Cable port(port Φ50mm / Φ100mm)*2, Shelves*2, LED Lighting device*1 Mobile Casters with foot cups, Power cable*5m | ||||
| Ambient temp. | +5 to +35°C | ||||
| Power supply | 220V AC 1Ø 50Hz | 380V AC 3Ø 50Hz | 380V AC 3Ø 50Hz | 380V AC 3Ø 50Hz | 380V AC 3Ø 50Hz |
| Customization service | Non-standard or special requirements can be customized. | ||||
