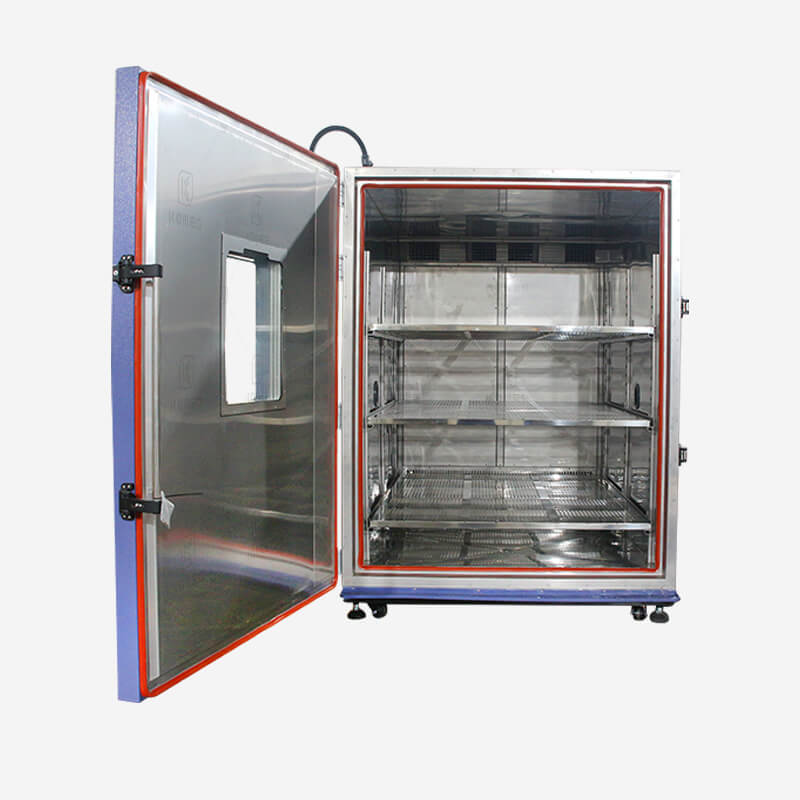

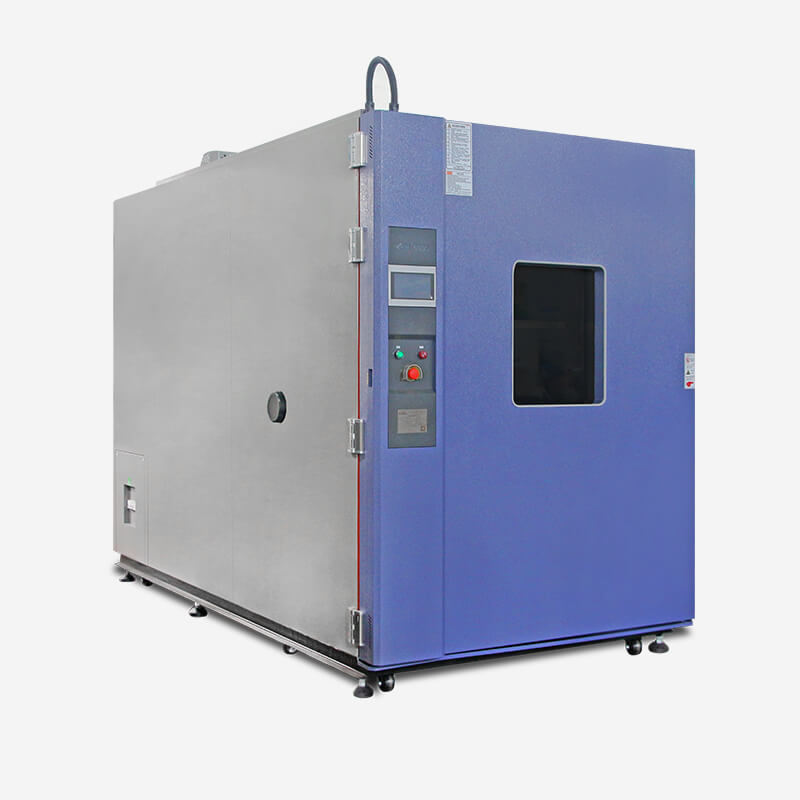

Medical Device Temperature Humidity Test Chamber
Medical Device Temperature Humidity Test Chamber
- 5000L temp humidity chamber
- Medical device testing
- Automatic water filling system
- Over-temperature protection system
- Movable casters
- Air cooling method
- Intelligent temperature control
- Large observation window
- Single door
This custom temperature humidity test chamber is used for testing vascular interventional medical devices. For some sensitive medical devices, inappropriate temperature and humidity may cause material performance degradation and affect the device’s functionality. The temperature humidity test chamber can simulate various conditions that medical devices may encounter in actual use, helping us evaluate their performance stability in different environments and ensuring safety during use.
- Floor-standing door design with larger internal capacity.
- Internal materials and shelves of the environmental chamber are made of stainless steel.
- Equipped with USB, RS485, and Ethernet communication interfaces.
- Vacuum glass window with electronic defogging film.
- 7-inch color touch screen intelligent controller with comprehensive functions.
- Sealing strip and electric heating device on the door prevent condensation and frost.
- Movable casters facilitate the movement of the test chamber.
- Intelligent refrigeration control continuously adjusts heat and cold to avoid energy waste.
- Fully enclosed compressor for low noise and minimal vibration.
- Electronic over-temperature protection device ensures safe use of the equipment.
- Multiple sensors ensure uniformity of temperature and humidity.
- Equipped with various safety protection systems to ensure stable operation of the machine.
Model | KFH-5000 | |
Inner Dimensions (mm)
| W | 1400 |
H | 1800 | |
D | 2000 | |
External Dimensions (mm)
| W | 1600 |
H | 2190 | |
D | 3075 | |
Temperature Range | 0℃ to 150℃ | |
Temperature Uniformity | ≤2.0℃ | |
Temperature Fluctuation | ±0.5℃ | |
Temperature Deviation | ≤±2.0℃ | |
Humidity Range | 20% to 98%R.H | |
Humidity Uniformity | ±3.0%RH | |
Humidity Fluctuation | ±2.0%RH | |
Humidity Deviation | ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) | |
Heating Rate | 0℃ to 120℃,3℃/min(empty) | |
Cooling Rate | 120℃ to 0℃,1℃/min(empty) | |
Cooling Method | Air-cooled |
