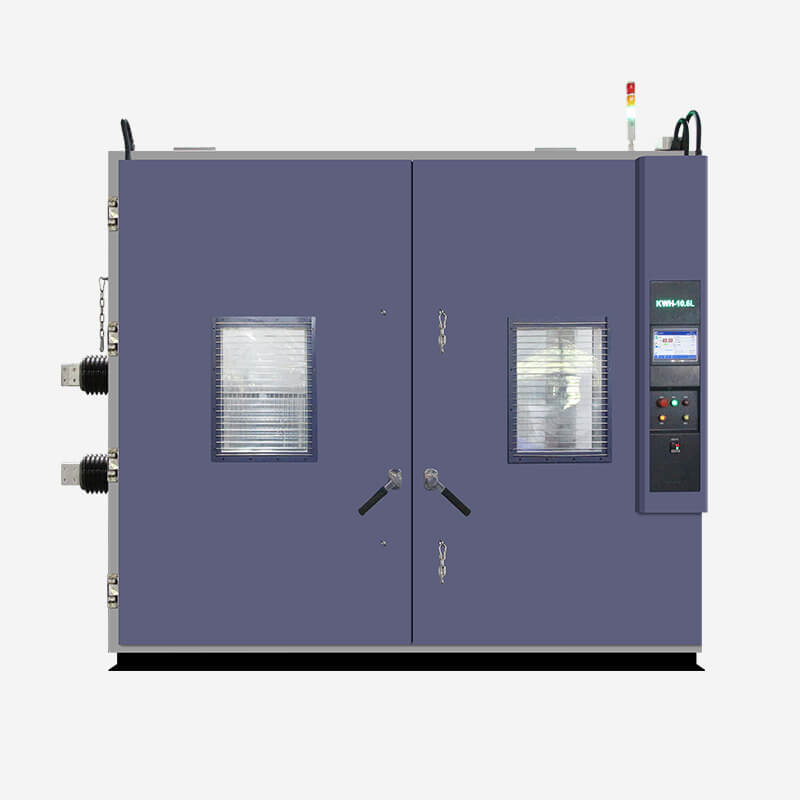

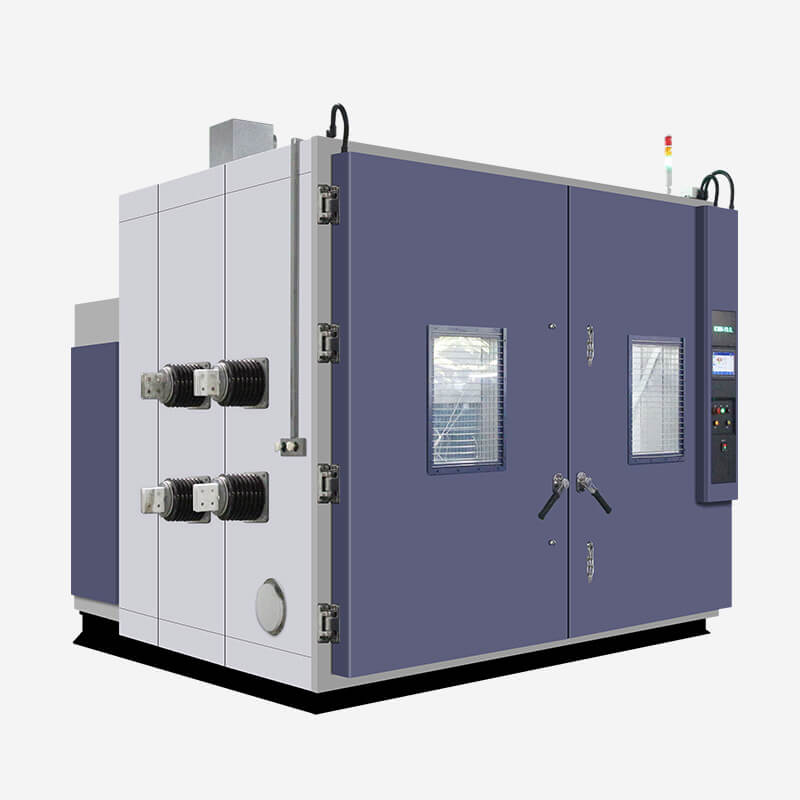

Walk-in Temperature and Humidity Test Chamber KWH10.6L
Walk-in Temperature and Humidity Test Chamber KWH10.6L
- Large environmental chamber
- Explosion proof walk-in chamber
- Various safety protection devices
- Energy-saving design
- High-quality materials
- Observation windows
- Color touch screen
- Accept customization
Description
Specification
Video
Description
Walk-in temperature and humidity test chamber is designed for testing large products and can also be used for batch testing of small products, components and materials.
This walk-in temperature and humidity test chamber adopts explosion-proof design and can be used in the fields of national defense, aerospace, automation, automobiles, electronic appliances, plastics, chemicals, and pharmaceuticals.
Features of Walk-in Temperature and Humidity Test Chamber
- High-strength fully welded non-slip bottom plate, not easy to deform, long service life.
- Self-developed controller operating system, easy to operate.
- Local area network (LAN) RS232/485 connection, easy to monitor data.
- Integral and modular design, easy to assemble.
- Custom sample trolley.
Specification
Model Number | KWH-10.6L |
Temperature Range | L: -40℃to+120℃ |
Volume | 10.6m³ |
Inner Dimensions W×H×D(mm) | 3000×2200×1600 |
External Dimensions W×H×D(mm) | 3300×2600×3800 |
Temperature Fluctuation | ±0.5℃ |
Temperature Deviation | ±2.0℃ |
Temperature Uniformity | ≤2.0℃ |
Humidity Range | 20% ~ 98% R.H |
Humidity Fluctuation | ±2.0% RH |
Humidity Uniformity | ±3.0% RH (no load) |
Video
