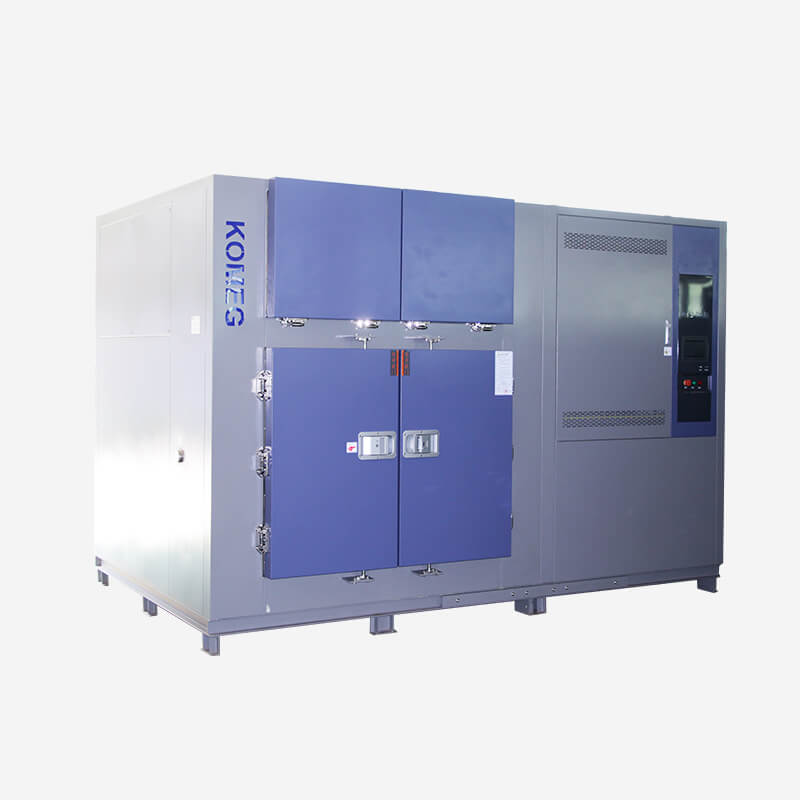

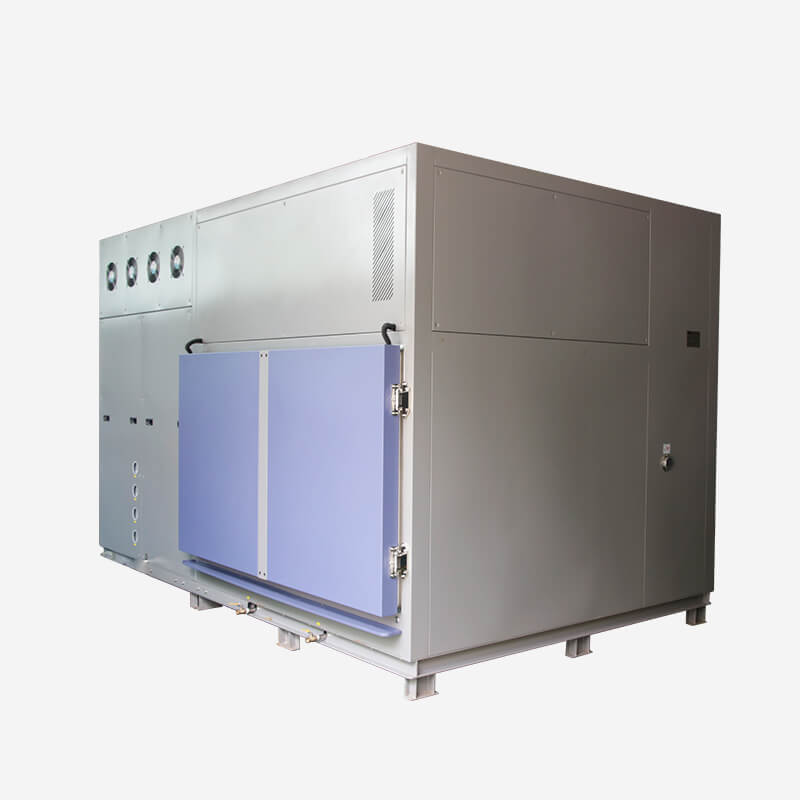

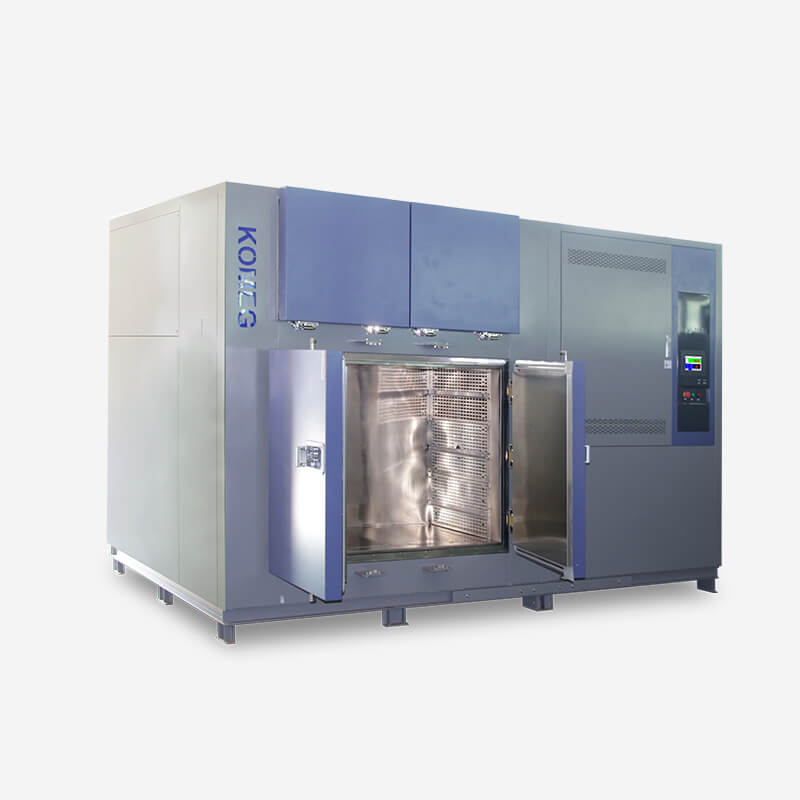

Walk-in thermal shock chamber is a customized three zones temperature shock chamber with a static test chamber to ensure that the sample will not be affected by vibration. The walk-in thermal shock chamber can be used to test different materials and is an essential equipment for many laboratories. The structure can be customized according to the site and test requirements.
Model | KTS3-966B | |
Inner Dimensions(mm) | W | 1380 |
H | 1000 | |
D | 700 | |
External Dimensions(mm) | W | 3580 |
H | 2220 | |
D | 2340 | |
Temperature Range | High Temperature Chamber | +60℃~+200℃ |
Low Temperature Chamber | -70℃~-10℃ | |
Heating Time | +60℃~+200℃,20min | |
Cooling Time | RT~-70℃,80min | |
Temperature Shock Performance | High temperature exposure +150℃：≥30min Transition time: ≤5min Low temperature exposure -65℃：≥30min | |
Temperature Fluctuation | ≤±0.5℃ | |
Temperature Deviation | ≤±2.0℃ | |
