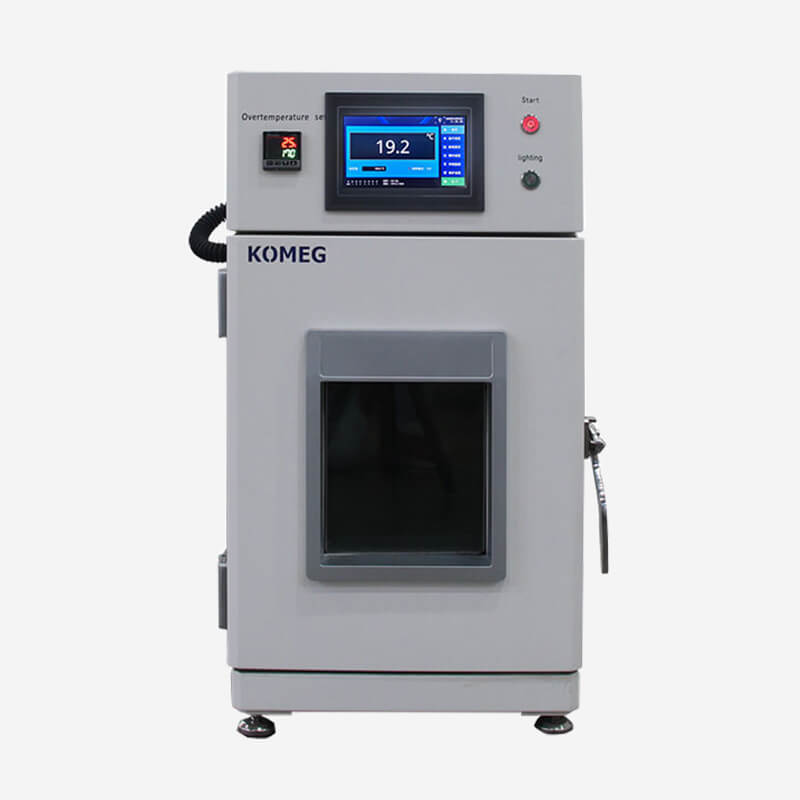

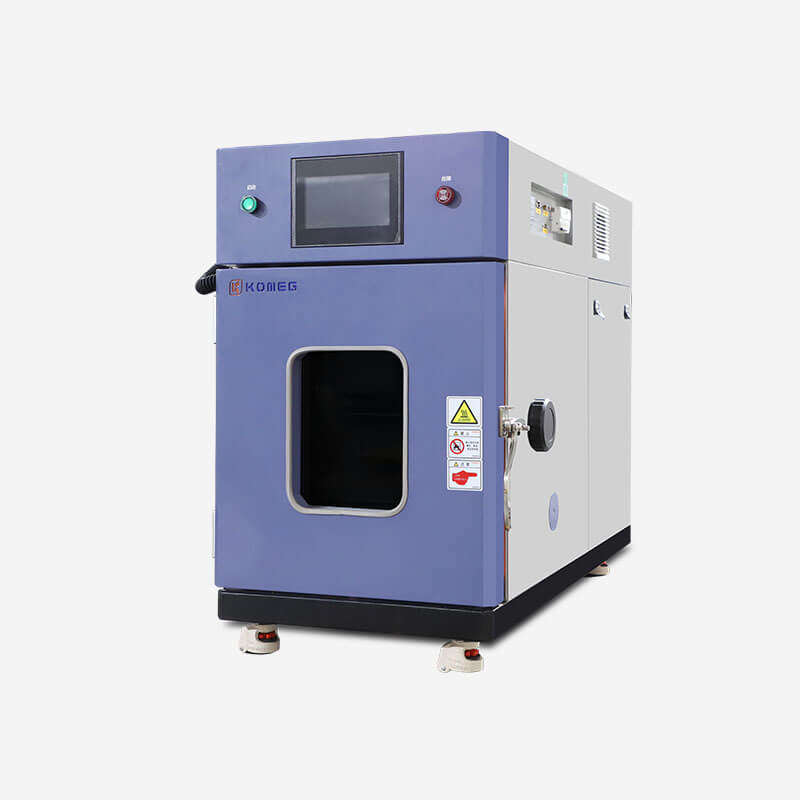

Benchtop Temperature Test Chamber KMT-36
Benchtop Temperature Test Chamber KMT-36
- Small size temperature chamber
- Temperature independent PID control
- Electronic over-temperature protection device
- Balanced temperature and humidity control method (BTHC)
- Mechanical compression refrigeration
- 36 liter volume
- Various alarm functions
- Color touch screen
- Mobile casters
- Stainless steel shelves
Description
Specification
Video
Description
Benchtop temperature test chamber is KOMEG’s smallest standard temperature test chamber with a temperature range of -60°C to +150°C. There are three options: KMT-36R, KMT-36L, and KMT-36S.
Structural Features of Benchtop Temperature Test Chamber

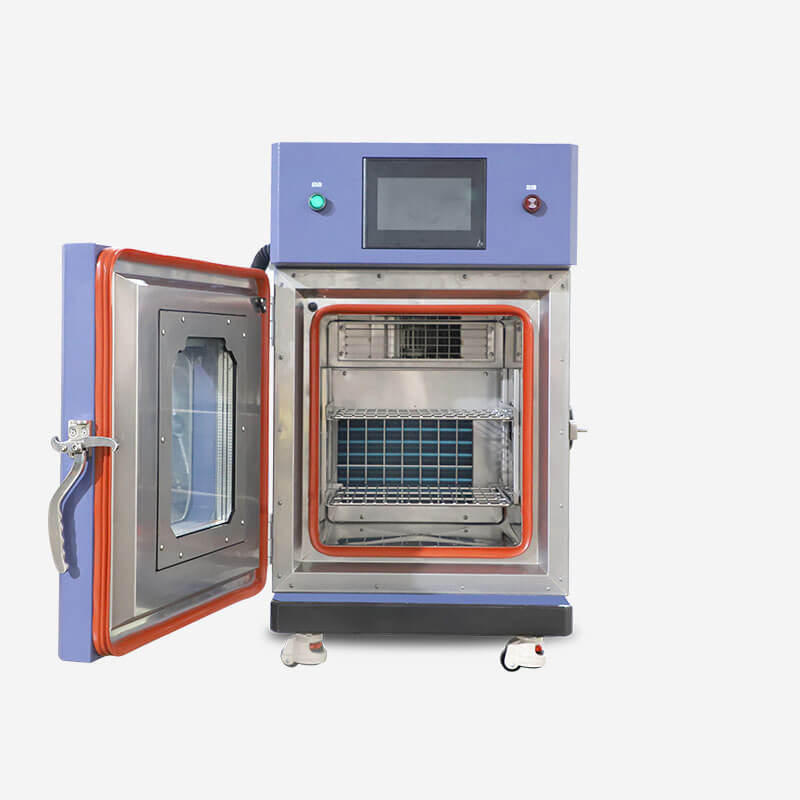

- Benchtop temperature test chamber is composed of three parts: main insulation box, independent refrigeration unit, electrical control cabinet.
- Insulation enclosure structure: outer layer of cold-rolled steel plate, middle layer of heat-resistant foam insulation material, inner SUS304 stainless steel plate.
- Insulation layer: rigid polyurethane foam insulation layer of flame retardant grade B2.
- Sealing: high and low temperature resistant silicone rubber sealing strip, anti-condensation electric heating device for door frame, pressure balance system.
- Door: single door, open to the left.
- Observation window: vacuum glass window with electronic anti-fogging film.
- Window lights: DC 24V LED lights.
Specification
Model Number（Standard） | KMT-36R | KMT-36L | KMT-36S |
Volume | 36L | ||
Inner Dimensions W×H×D（mm） | 300×400×300 | ||
External Dimensions W×H×D（mm） | 510×830×1020 | ||
Temperature Fluctuation | ±0.5℃ | ||
Temperature Range | -20℃to+150℃ | -40℃to+150℃ | -60℃to+150℃ |
Heating Rate | -20℃to+100℃:3℃/min | -40℃to+100℃:3℃/min | -60℃to+100℃:3℃/min |
Cooling Rate | +20℃to-20℃: 1℃/min | +20℃to-40℃:1℃/min | +20℃to-60℃:1℃/min |
Power | 220V AC, 3.5KW, 12A (Max.) | ||
Noise | ≤75dB | ||
