Low pressure test chamber, also called altitude test chamber, is a climate chamber that combines low pressure (altitude), temperature and humidity testing.
The low pressure test in battery testing standards generally requires a pressure of 11.6kPa. If you only need to do a low pressure test, you can choose an altitude test chamber designed without temperature and humidity test functions. Low pressure test chambers are custom products, please tell us the test requirements you need.

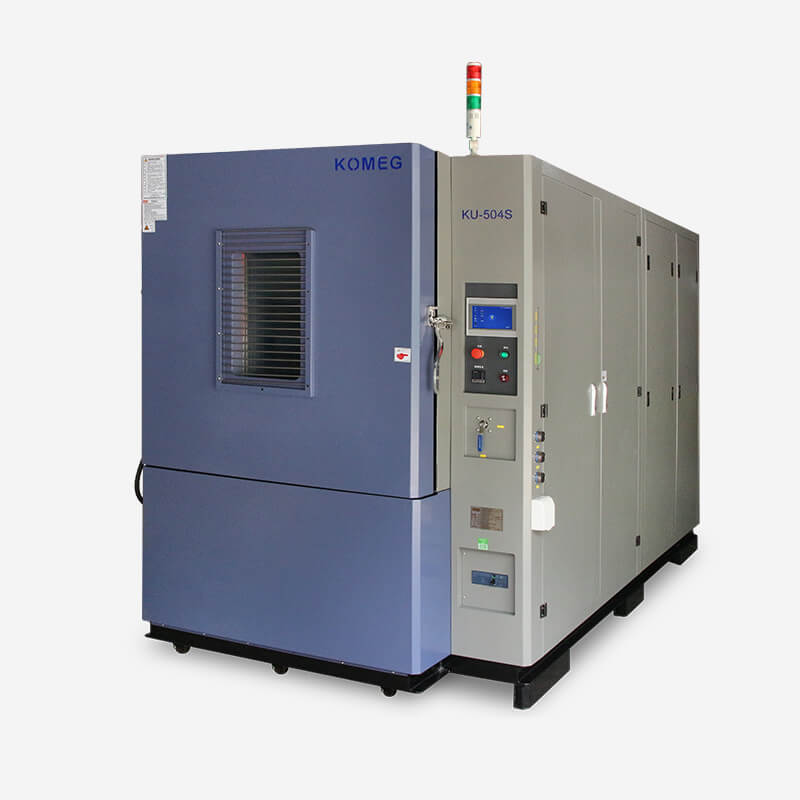

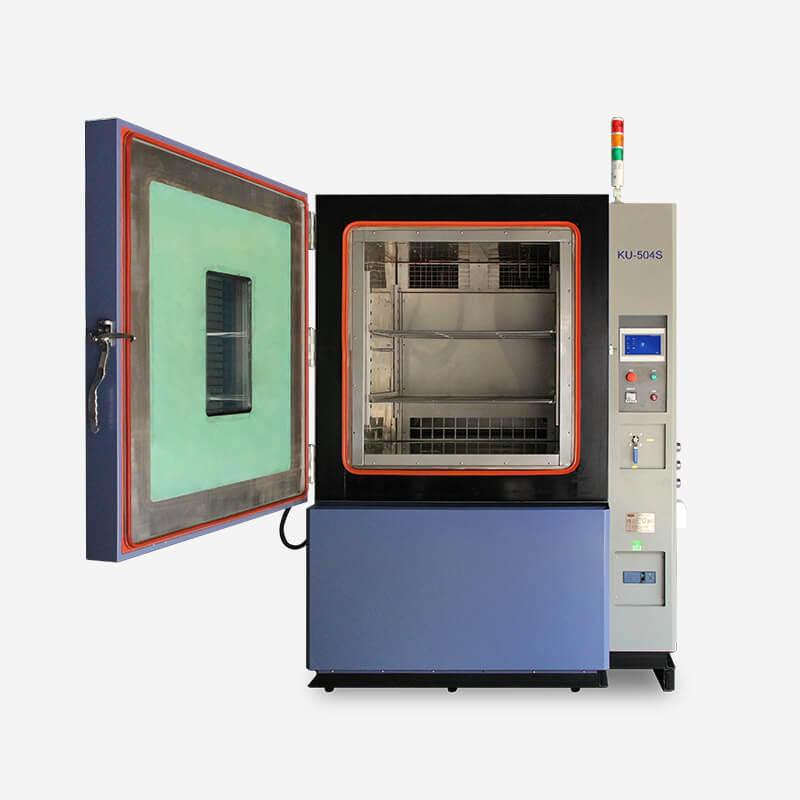

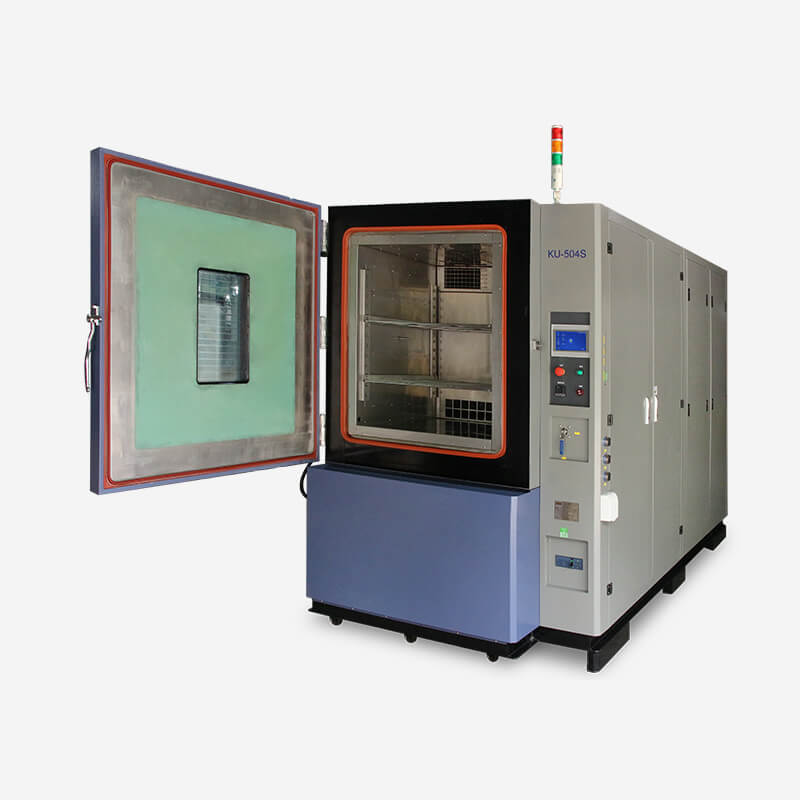

Model No. | KU-504S |
Volume | 504L |
Inner Dimensions W×H×D（mm） | 800×900×700 |
External Dimensions W×H×D（mm） | 1650×2450×3000 |
Observation Window (mm) | 350×500 |
Temperature Range | -70℃~+180℃ |
Temperature Deviation | ±2.0℃ (normal pressure) |
Temperature Fluctuation | ≤±0.5°C (normal pressure) |
Temperature Uniformity | ≤±2.0°C (normal pressure) |
Humidity Range | 20% to 98% R.H |
Humidity Deviation | ± 3.0%RH (＞75%RH) , ± 5.0%RH (≤75%RH) |
Humidity Fluctuation | ±2.0%RH (empty, normal pressure) |
Pressure Range | Normal pressure-0.5kPa |
Depressurization Rate | Normal pressure~0.5kPa within 30 min |
Power Supply | 380V AC(±10%) 50Hz±0.5Hz |
Refrigeration System | Water cooled |
GET A QUOTE
