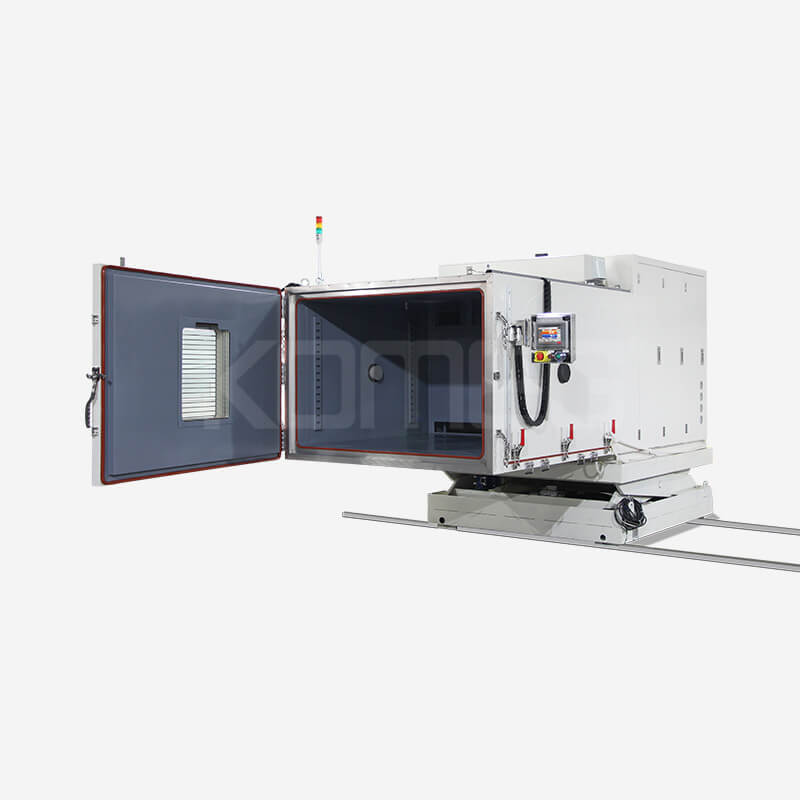

Agree Chamber can be used to do three tests at the same time: temperature, humidity and vibration. This Agree Chamber with a volume of 2250L adopts an overall explosion-proof design, and there are three temperature ranges to choose from, the lowest temperature is -70°C, and the highest temperature can reach 180°C.
The vibration table of Agree Chamber can be selected according to the requirements of customers. The vibration table adopts the upper and lower roller structure, and the anti-overturning force is stronger.
Model No. | KMVH-2250 | |
Volume | 2250L | |
Inner Dimensions W×H×D（mm） | 1500×1000×1500 | |
Temperature Range | R: -20°C to +150°C L: -40°C to +150°C S: -70°C to +150°C (+180°C optional) | |
Temperature Fluctuation | ±0.5°C | |
Temperature Uniformity | ≤ 2.0°C | |
Temperature Deviation | ≤ ±2.0°C | |
Humidity Range | 20%RH~98%RH | |
Humidity Fluctuation | ±2.0%RH | |
Humidity Uniformity | ±3.0%RH (no load) | |
Humidity Deviation | ±3.0%RH(>75%RH)±5.0%RH(≤75%RH) | |
Heating（Cooling）Rate | ≤5°C/min or ≤10°C/min (-55°C~+80°C) | |
Vibration Device | Vertical Table | 1200 |
Horizontal Table | 1200/1200 | |
Frequency Range | 3-3000Hz | |
Maximum Displacement | 5.1cm | |
Maximum Speed | 2.2m/s | |
Maximum Acceleration | 1200m/ | |
Maximum Displacement | 100mmp-p | |
Noise | ≤65dB | |
