Thermal shock chambers are effective tools in subjecting products to a thermal shock test. They are designed to give quick transitions between a HOT and COLD temperature zones. Available in vertical, horizontal models, in both standard and custom sizes.
KOMEG thermal shock chambers are widely used in all industries including Automotive, Electronics, Aerospace, and others to help find product defects in electronic components and product assemblies.
There are 2-zone and 3-zone types.
2-zone structure: The sample stays in a basket, which moves up-down between the hot zone and cold zone, which is like an elevator.

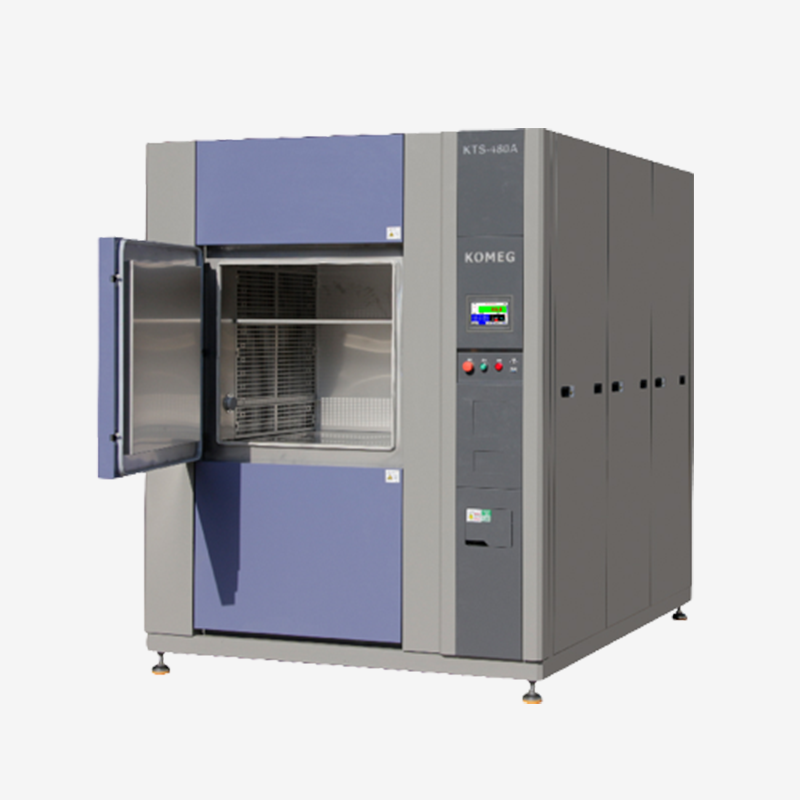

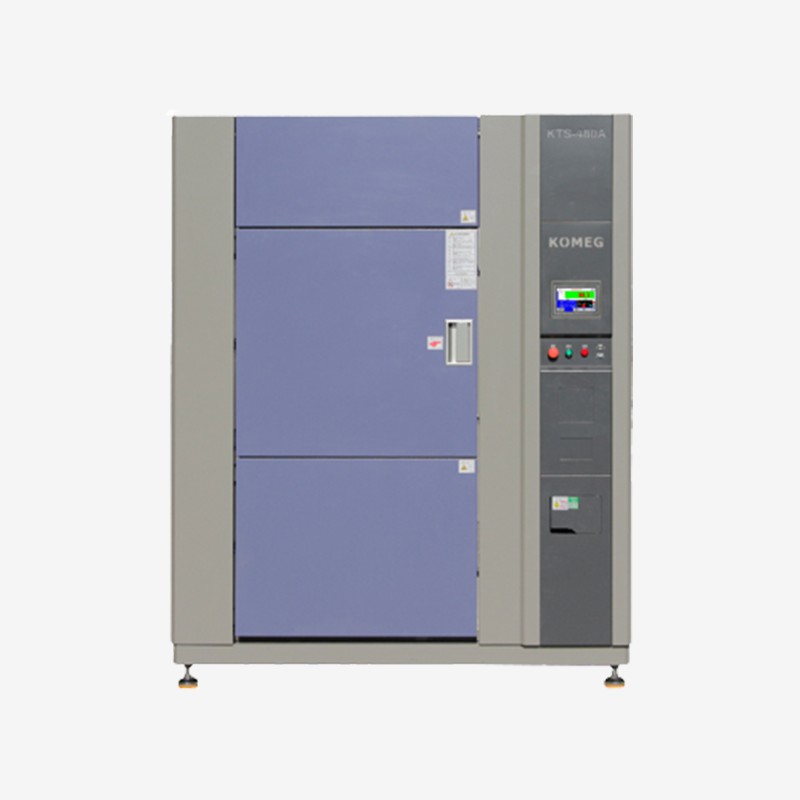

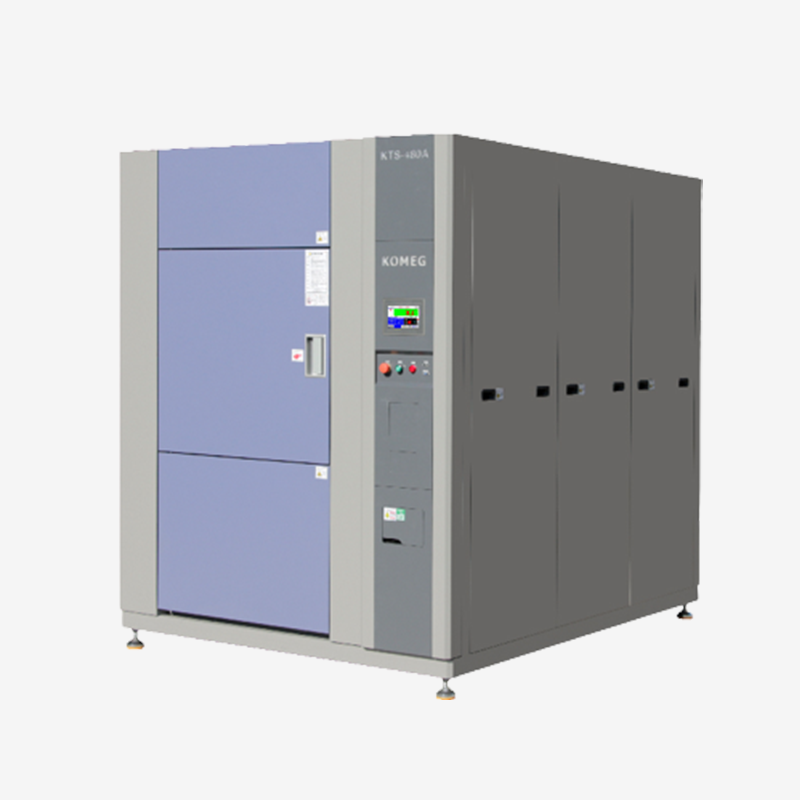

3-zone structure: There is a hot zone, a cold zone and a test zone. The sample stays in the test zone and doesn’t move up-down.
For more details, welcome to contact us today.
| Model No. | KTS3-64 | KTS3-100 | KTS3-200 | KTS3-300 | KTS3-500 | KTS3-1000 |
| Test Space Volume（Liters） | 64 | 100 | 200 | 300 | 500 | 1000 |
| Inner chamber size W×H×D(mm) | 400×400×400 | 500×450×450 | 650×460×670 | 850×600×650 | 1000×750×700 | 1000×1000×1000 |
| Exterior chamber size W×H×D(mm) | 1420×1930×2000 | 1520×1990×2050 | 1620×1980×2140 | 1840×1862×2100 | 1900×1962×2200 | 1900×2150×2200 |
| High Temp. Chamber | +60ºC to +200ºC | |||||
| Pre-heating time | from normal temperature RT ~ +200ºC within 30 min | |||||
| Low Temp. Chamber | A: -60ºC to 0ºC B: -70ºC to 0ºC D: -75ºC to 0ºC | |||||
| Pre-cooling time | A: +20ºC to -60ºC in 60min B: +20ºC to -70ºC in 70min D: +20ºC to-75ºC in 70 min | |||||
| Temp. shock range | A: -40°C to +150°C B: -55°C to +150°C D: -65°C to +150°C | |||||
| Recovery time | ≤ 5min | |||||
| Temp. fluctuation | ±0.5°C | |||||
| Temp. uniformity | ≤ 2.0°C | |||||
| Exterior chamber material | High-quality carbon steel with painting | |||||
| Interior chamber material | SUS304 matte stainless steel plate | |||||
| Insulation material | Rigid polyurethane foam insulation | |||||
| Refrigeration system | Water cooled | |||||
| Semi-hermetic compressor, cascade refrigeration system, Eco-friendly refrigerant | ||||||
| Controller | LCD Touch Screen Controller with PID control | |||||
| Safety protection device | NFB(No fuse breaker), over pressure, over heat and over current protectors for compressor, over temperature protectors, over load protector of fan, dry heat protector, short of water protector | |||||
| Standard accessory | Cable port(portΦ50mm)*2, shelves*2 Mobile Casters with foot cups | |||||
| Ambient temp. | +5 to +35°C | |||||
| Power supply | 380V AC 3Ø 50Hz | |||||
| Customization service | Non-standard or special requirements can be customized. | |||||
| Note | Our R&D team will optimize and upgrade KOMEG standard environmental chambers every year, so some parameters may change. Please consult our salesperson for confirmation of specific specifications. | |||||
