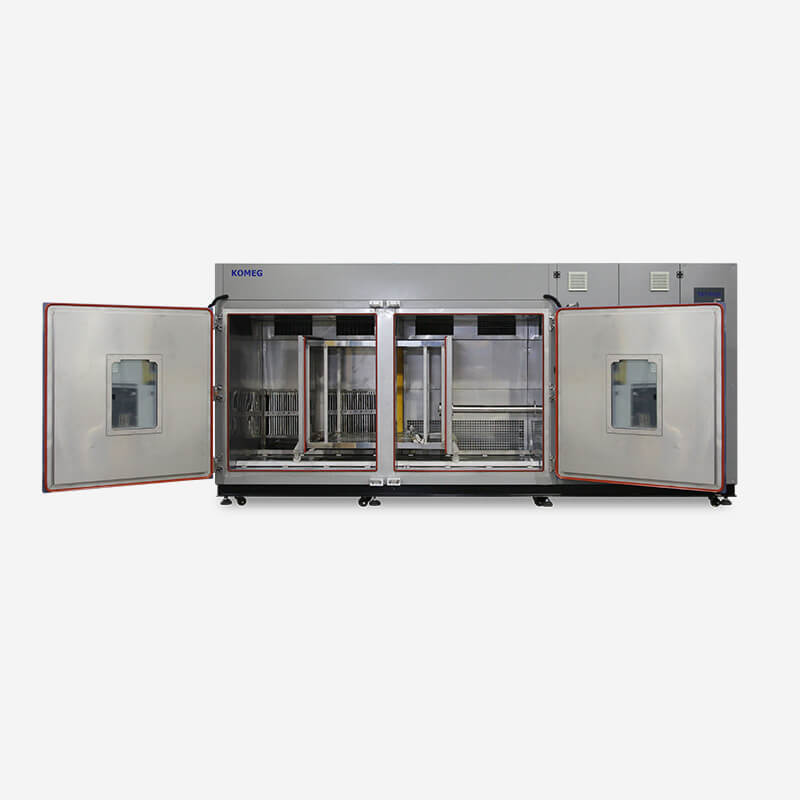

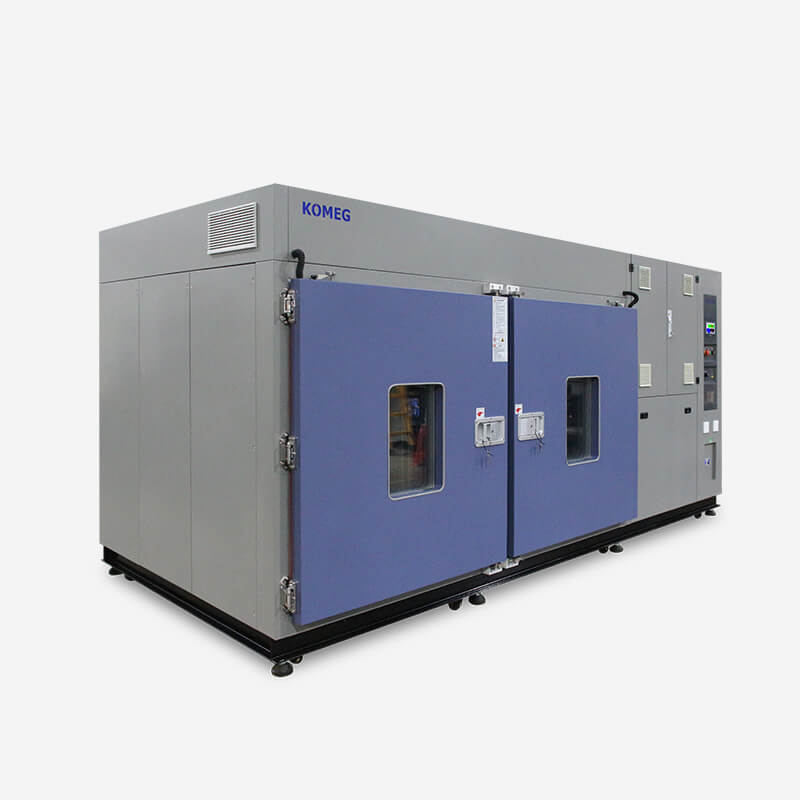

Horizontal thermal shock test chamber is a left and right moving structure, the test basket moves between the high and low temperature zones for temperature shock testing.
This two zones horizontal thermal shock test chamber is mostly used in the automotive industry. You can also customize the three zones horizontal thermal shock test chambers: three test zones plus one or two baskets.
Model Number | TST-512D | |
Volume | 512L | |
Test Zone Dimensions W×H×D（mm） | 800×800×800 | |
External Dimensions W×H×D（mm） | 4600×1900×2130 | |
Temperature Range | High Temperature Chamber | +60℃ ~ +200℃ |
Low Temperature Chamber | 0 ~ -70℃ | |
Heating Time | RT ~ +200℃: about 30min | |
Cooling Time | (B) +20℃ ~ -70℃: within 60min(+25℃~ -60℃ within 60min) | |
Test Chamber | (D): -65℃ ~ +150℃ | |
Temperature Shock Performance | High temperature exposure：30min Transition time: ≤5min Low temperature exposure：30min | |
Temperature Fluctuation | ≤1℃ | |
Temperature Uniformity | ≤2℃ | |
Temperature Deviation | ≤±2℃ | |
Test Basket Transfer Time | ≤10S | |
Power | 78KW | |
