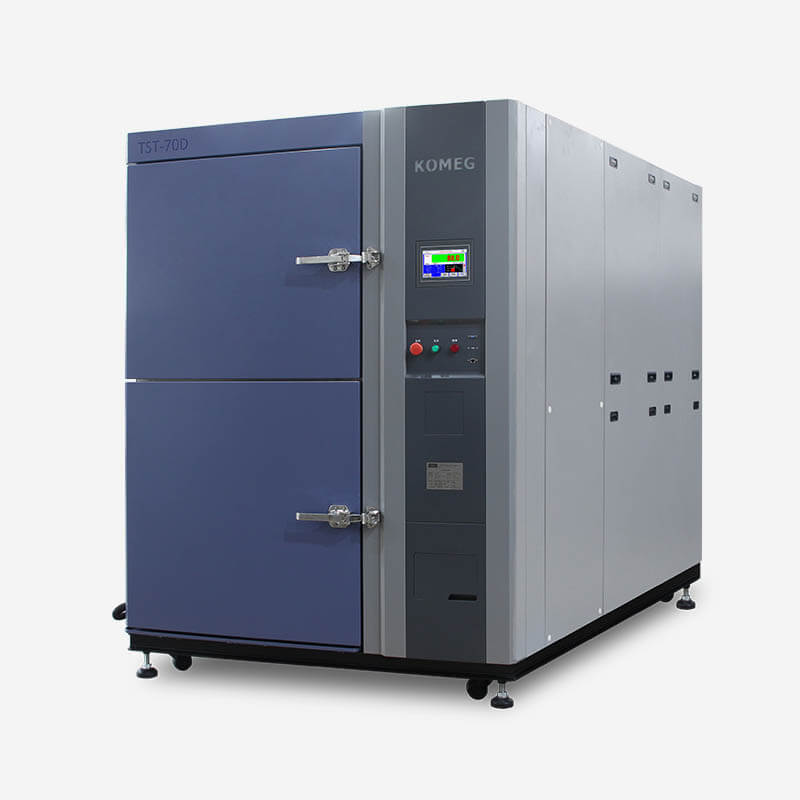

Air to Air Thermal Shock Chamber TST Series
Air to Air Thermal Shock Chamber TST Series
- Water cooled
- Cable port
- Shelves
- Mobile casters
- Color touch screen
- SUS304 stainless steel material
- Safety protection device
- Heat shock test
- Cold shock test
- Accept customization
Some products are subject to instantaneous temperature changes in daily use. To ensure that the product performance will not be affected, manufacturers and relevant laboratories often use air to air thermal shock chambers to do temperature shock tests.

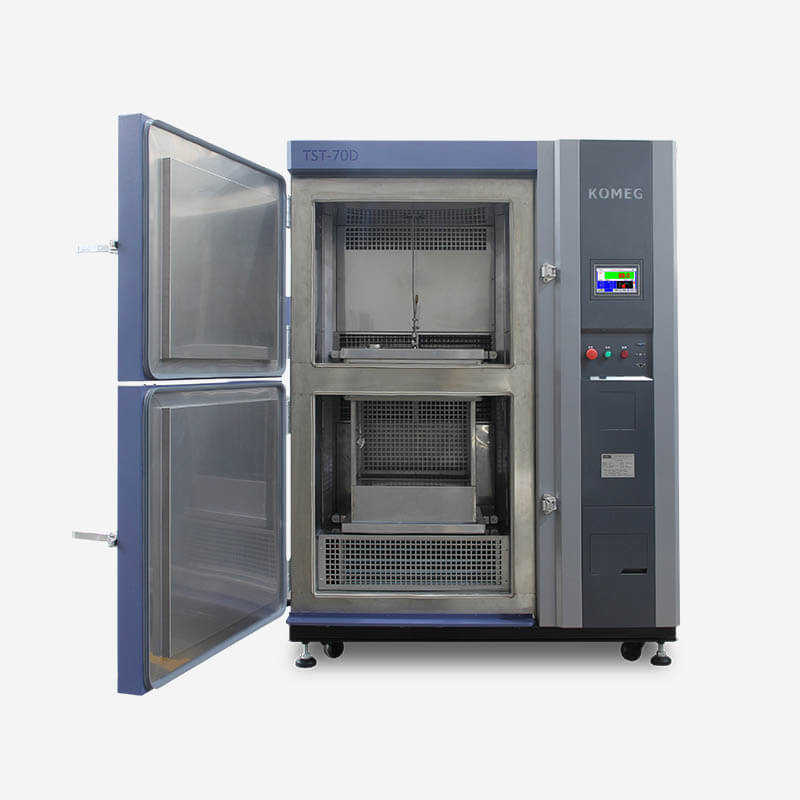

Most air to air thermal shock chambers are vertical structures. If you want to save space, it is recommended to choose a vertical thermal shock chamber. When using a two zones thermal shock chamber, the test basket moves between the two test zones for thermal shock testing. There are three thermal shock ranges: -40℃~+150℃, -55℃~+150℃, -65℃~+150℃.
Air to air thermal shock chamber is available in three-zone and two-zone structures. You can choose based on the characteristics of the test product and your testing needs, or let our team give you some suggestions.
Model | 70A/B/D | 100A/B/D | 150A/B/D | 300A/B/D | 500A/B/D | |
Basket Dimensions(cm) | W | 50 | 50 | 67 | 85 | 90 |
H | 35 | 40 | 46 | 55 | 70 | |
D | 40 | 50 | 49 | 64 | 80 | |
External Dimensions(cm) | W | 150 | 95 | 152 | 194 | 202.5 |
H | 197 | 204 | 194 | 226 | 268.5 | |
D | 190 | 203 | 253 | 273.5 | 274 | |
Hot Zone | Temperature Range | +60℃~+200℃ | ||||
Heating Time | RT~+200℃: about 30min | |||||
Cold Zone | Temperature Range | A: 0~-40℃,B:0~-55℃, D:0~-65℃ | ||||
Cooling Time | RT~-70℃: about 60min | |||||
Basket | Thermal Shock Range | A: -40℃~+150℃,B: -55℃~+150℃,D: -65℃~+150℃。 | ||||
Temperature Uniformity | ≤±2.0℃ | |||||
Temperature Fluctuation | ≤±0.5℃ | |||||
Temperature Deviation | ±2.0℃ | |||||
Transfer Time | ≤10s | |||||
Recovery Time | ≤5min | |||||
Power | 380V AC |
