Televisions face a wide variety of environmental conditions during daily use, ranging from hot and humid tropical climates to cold and dry winter weather, as well as conditions with frequent temperature and humidity fluctuations. So, how can you ensure your TV operates properly in these environments? KOMEG’s walk-in temperature and humidity environmental chamber can help.
Using a humidity and temperature controlled chamber to simulate different environments can help manufacturers identify potential issues with TVs under specific conditions. For example, condensation can damage electronic components, high temperatures can lead to overheating, and humidity can affect display performance. Through testing, manufacturers can evaluate the functionality and durability of TVs in various environments, ensuring compliance with relevant electronic equipment testing standards such as IEC 60068 and MIL-STD.

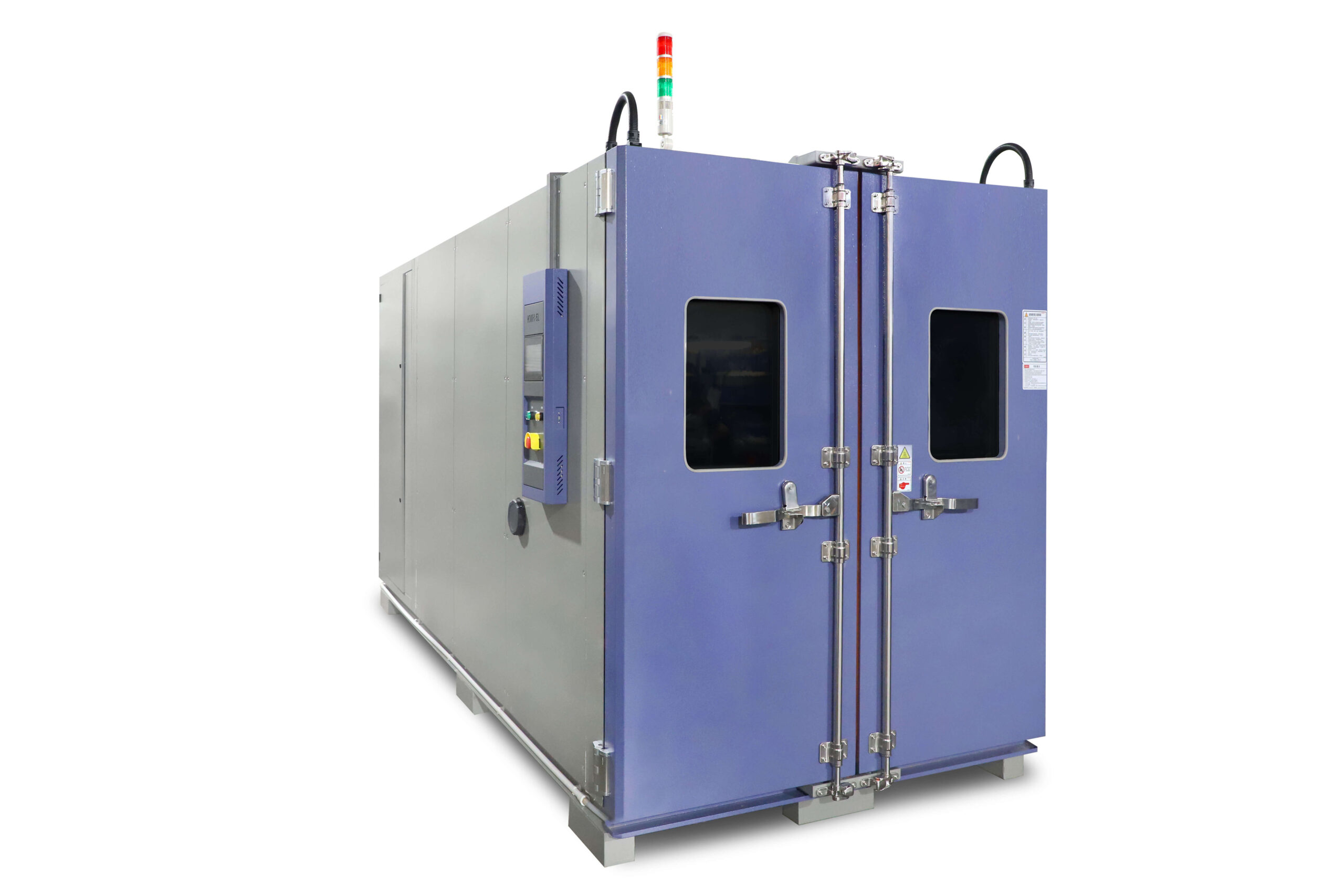

As people’s pursuit of a superior viewing experience with televisions increases, many tend to purchase larger TVs, even when the picture quality is comparable. To accommodate multiple large-screen TVs for testing, walk-in climate chambers are essential. Below is a custom walk-in temperature and humidity environmental chamber that we developed for a client in the television industry.
Model：KWH-6L
Inner Dimensions：W1500 mm*H1700 mm*D2300 mm
External Dimensions：W1700 mm*H2000 mm*D4050 mm
Temperature Range：-50℃ to +100℃
Temperature Fluctuation：±0.5℃
Temperature Deviation：≤±2.0℃
Temperature Uniformity：≤2.0℃
Heating Rate：-40℃ to +100℃, 3℃/min
Cooling Rate：+100℃ to -40℃, 2℃/min
Humidity Range：20% to 98%R.H
Humidity Fluctuation：±3.0％RH
Cooling Method：Water-cooled
